Transformer Testing

TESTING OF SWITCHYARD EQUIPMENTS

TRANSFORMERS

Offline:

  • Magnetic Balance test
  • Insulation resistance & polarization Index, Dielectric Absorption Ratio
  • No Load Loss & Current
  • Short circuit impedance & Load Loss at low voltage
  • Turns Ratio
  • Voltage ratio & check of phase displacement
  • Winding resistance
  • Sweep frequency response analysis (SFRA)
  • Magnetization current at low voltage
  • C and Tan delta power factor measurement of transformer winding and Bushings

Online:

  • Partial Discharge Test
  • Thermography

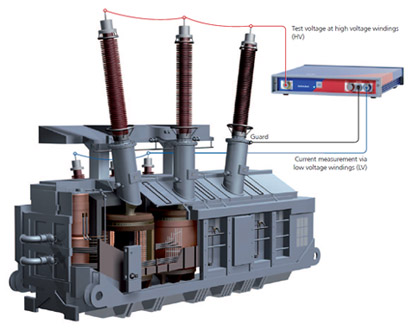

Dielectric Response Analysis and Moisture in Oil-Paper Dielectrics(DIRANA)Test

Dielectric Response Analysis and Moisture in Oil-Paper Dielectrics (DIRANA) Test

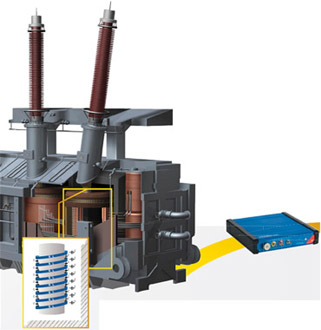

Sweep Frequency Response Analysis (SFRA) Test

Sweep Frequency Response Analysis (SFRA) Test

CIRCUIT BREAKERS

  • Insulation Resistance Test
  • Contact Resistance Test
  • Time Interval Test (Opening, Closing,Close-Open)
  • DCRM

CURRENT TRANSFORMERS/VOLTAGE TRANSFORMERS

  • Insulation Resistance Test
  • Capacitance and Tan Delta Test
  • Ratio Test
  • Polarity Test
  • Winding Resistance Test
